Wood Dual Shaft Shredder

未设置图片

Features:

  • High torque, low shaft speed
  • Counter-rotating cutter
  • Disks in a variety of tooth patterns and sizes.
  • Minimum noise, dust, and energy requirements
  • Automatic reverse in case of a jam.
BEFORE AFTER

Specification:

Types KJSS60 KJSS70 KJSS80
Main Motor   37kW*2 55kW*2   75kw*2
Shredding Romm  642*1005mm 740*1221mm  822*1221mm
Inlet Size   1780*1417mm 1996*1514.5mm  1996*1597mm
Input wood max size   dia150mm dia200mm  dia200mm
Qty of Rotary Blades   19+18pcs 23+22pcs  23+22pcs
Output chips size   30-50mm 30-50mm  30-50mm
Capacity   2-3T/H 3-4T/H  4-5t/h
Dimension  3900*2400*1710mm    4100*2750*1775mm    4100*2900*1830mm
Weight 7000kgs  9000kgs  11000kgs

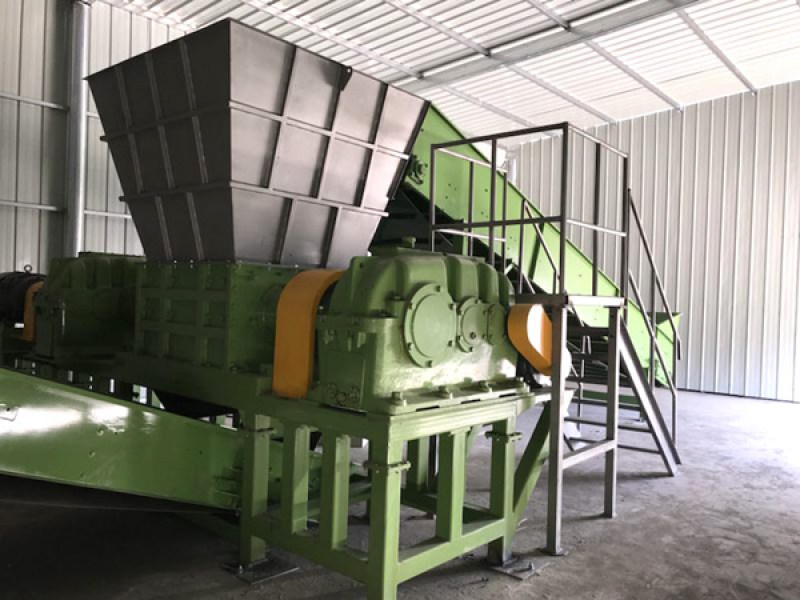

 Machine pictures:

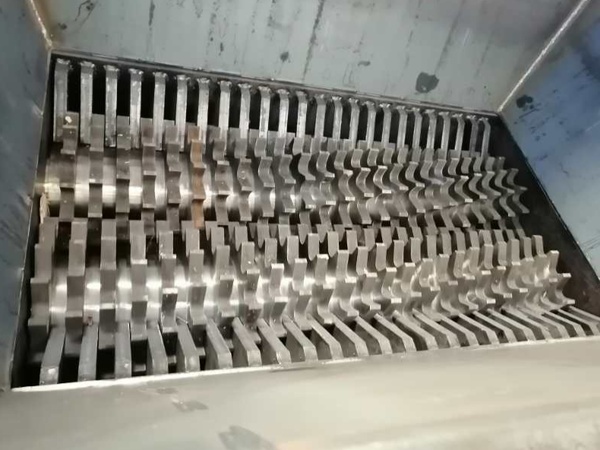

wood pallet shredder

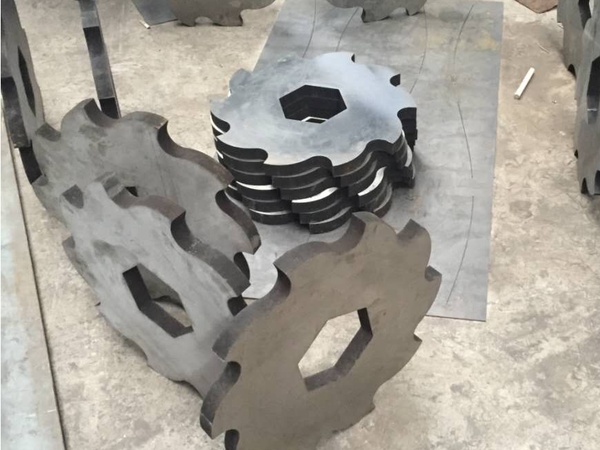

Blade: Quantity and thickness of the teeth,  will be customized according to the user's requirement of output chips size.

wood pallet shredder, dual shaft shredder blade
