Rotor Debarker

未设置图片

Application:

  • Panelboards (PB, MDF, OSB)
  • Pellets and briquettes
  • Pulp and paper

Technical features:

  • Hydraulically adjustable gate for the control of processing material quantities and regulation of the debarking quality
  • Two rotors and speed adjustable
  • The debarking tools (cams) are screwed and individually exchangeable

Benefits:

  • Low investment
  • Low energy consumption
  • Less space needed
  • Low construction cost and less time

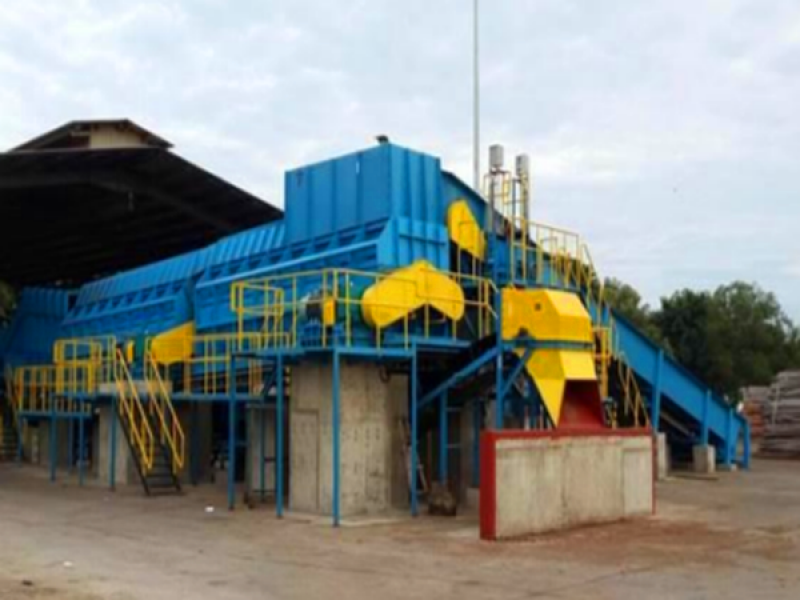

Rotor Debarker offers the efficient continuous debarking of round wood. The logs are laterally fed into the trough, set into rotating motion by long rotors with debarking tools, and moved to the discharge area by the tilt of the rotors.

rubber wood debarked rubber wood debarker
BEFORE AFTER



Specification:

A complete log debarking system will include:

  • Input chain conveyor
  • Chute
  • Rotor Debarker
  • Output china conveyor
  • Roller Conveyor
  • Belt Conveyor
  • Output chute to the wood chipper
  • Discharge conveyor of the barks

The whole system will be customized according to the customer's production demands, bellowing one of the types of drum debarker is designed for an Indonesian client, FYI.

Types KJRD2280/16
Main Motor   75kW*2
Diameter of drum  960mm
Length of drum 8 meters *2
Speed of drum   40rpm(adjustable)
Capacity  90m³/h

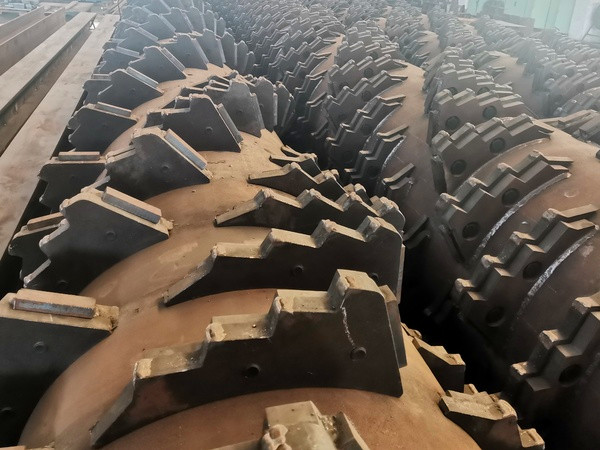

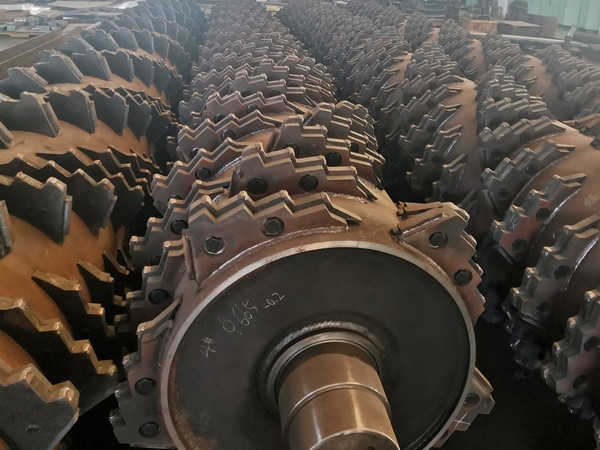

Machine pictures of the rotors and blades: The blades are replaceable

rotor debarker rubber blade rotor debarker



How does the drum debarker works? Please check the VIDEO.
