V-belt Pellet Mill
KJMZLH-Series Pellet Mill is a type of double belt-driven pellet mill, it offers rock-bottom production costs in the simplest, most efficient design available. has fewer parts—for less wear, quiet operation, and lower maintenance costs. This highly dependable equipment produces pellets at quite possibly the lowest cost-per-ton available.
Features:
- Double belt-driven.
- Forging one-piece main shaft.
- The pelletizing chamber can withstand super torque.
- Automatic lubrication of the main shaft of the pellet mill
- Stainless steel movable door, durable
- Pneumatic quick emergency unloading door to avoid burning out the motor
- Forged hollow shaft, durable
- SKF bearing
Wide variety of input materials :
- Sawdust
- Straw powder
- Rice husk (paddy husk)
- Peanut stalk powder and etc

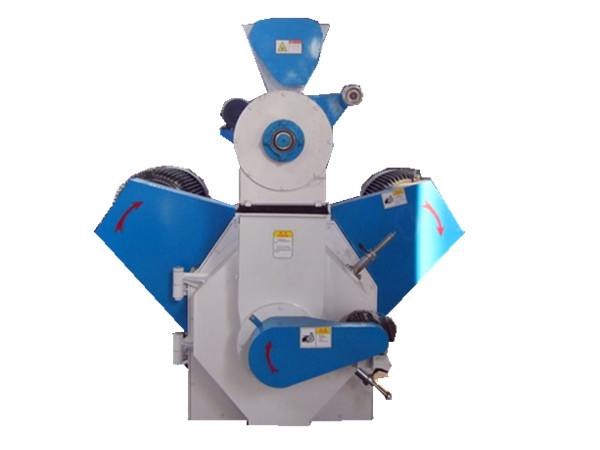

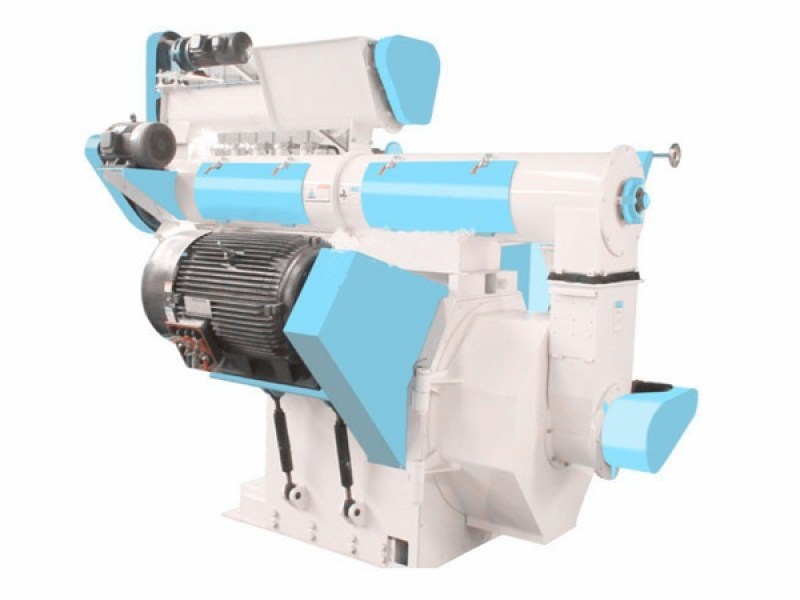

Machine Pictures
 |
 |
Specification:
| Types | KJMZLH420 | KJMZLH520 |
| Main Motor |
2 *45kw |
2 * 55kw |
| Ring die Speed | 224.6rpm | 170rpm |
| Feeder motor | 1.5kw (variable speed) | 1.5kw1.5kw (variable speed) |
| Condition screw | optional | optional |
| Force feeder | 0.75kw | 0.75kw |
| Pellet size | 6/8/10/12mm | 6/8/10/12mm |
| Capacity | 800-1000KGS/H | 1200-2000KGS/H |
| Machine dimension | 2014*005*1588mm | 2171*2209*1534mm |
| Weight | 4300kgs | 5180kgs |

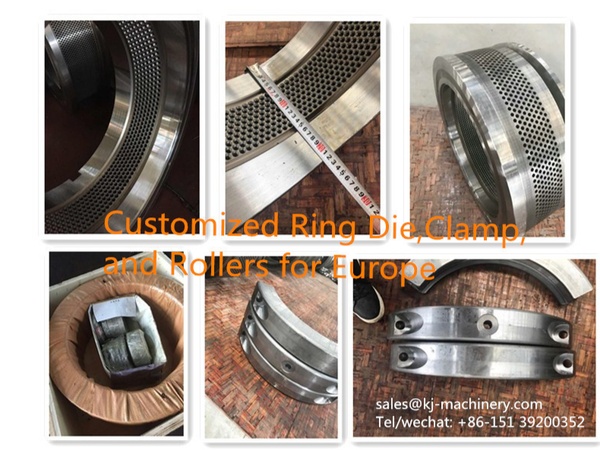

Spare parts for V-belt pellet mill:
 |
