Vertical Pellet Mill


KJVPM-Series Pellet Mill is a type of vertical ring die pellet mill, it combines the advantages of a flat die pellet mill and a traditional horizontal ring die pellet mill, especially suitable for fluffy and loose feedstock like palm EFB fiber, straw powder and etc. It also has the benefits of low electricity consumption.



  • The larger size of the pelletizing chamber
  • Vertically material feeding by gravity is more constant and evenly.
  • Automatic lubrication of the main shaft of the pellet mill
  • Two sides useful ring die reduces spare parts cost.
  • Lower electricity consumption

Wide variety of input materials :

  • Sawdust
  • Straw powder
  • Rice husk (paddy husk)
  • Peanut stalk powder and etc
  • Palm EFB fiber

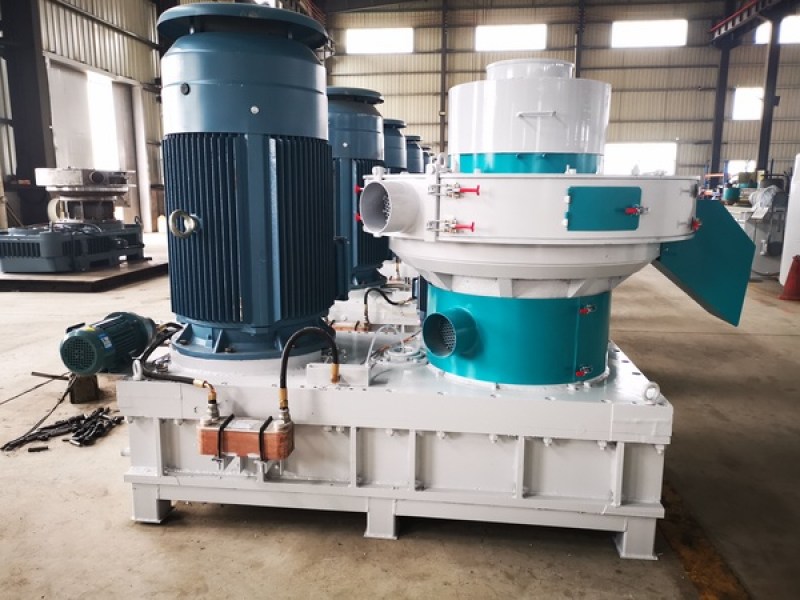

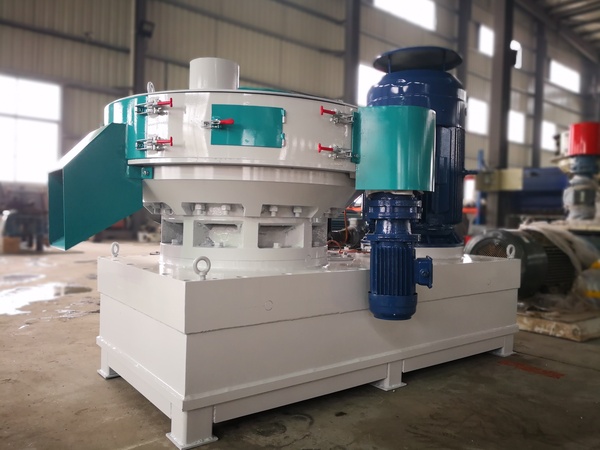

Machine Pictures

china vertical pellet mill china vertical pellet machine



Types KJVPM560 KJVPM700
Main Motor



Pellet size 6/8/10/12mm 6/8/10/12mm
Capacity  800-1500KGS/H 1200-2000KGS/H
Machine dimension 2800*1500*1350mm 3000*1700*1500mm
Weight 5000kgs  5800kgs


Spare parts for Vertical ring die pellet mill:

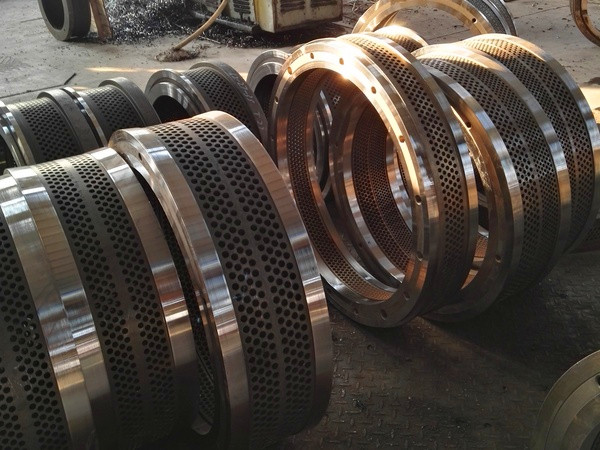

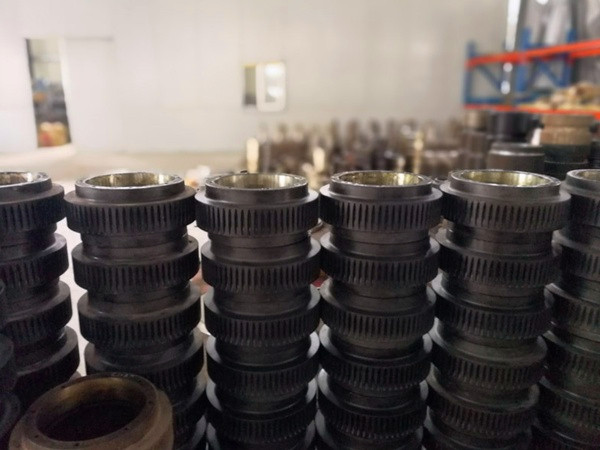

china ring die two sides roller pellet mill china
