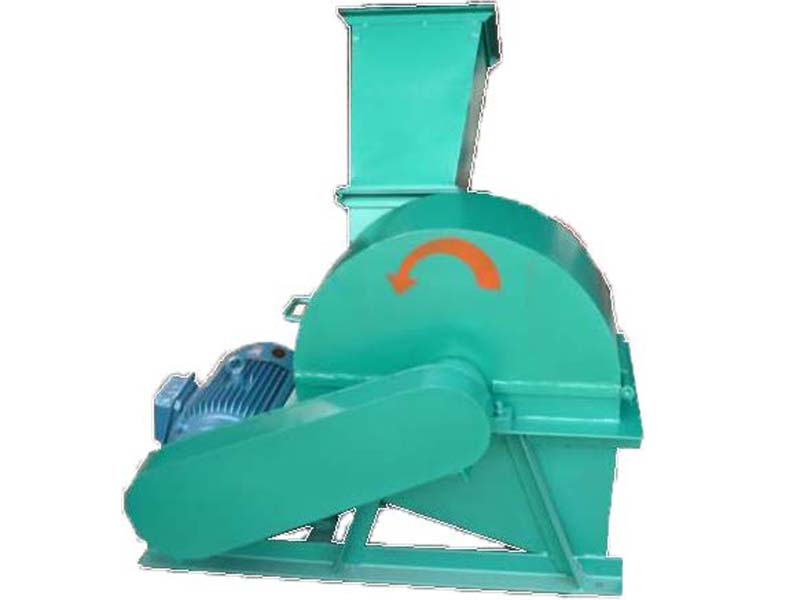

Small Wood chipper with hammers
Small but high efficient Wood Chipper, has both disc blade and sets of hammers. Turn logs directly into sawdust.
A very useful wood chipper if your raw material are mainly wood logs or tree branches, and if you want to make wood pellets or wood briquettes.
KJ-WCH22
KJ-WCH30
Raw material size: 30mm to 270mm in diameter
Output sawdust: 3mm or bigger
The wood will be first chipped into wood chips by high rotating disc blades, then the chips will be further crushed into sawdust by also high speed rotating hammers, in the output of the machine, there is a screen to control the output size. By changing the screen size you will get different output size for your demands.
6 types are available now
KJ-WCH11
Power: 11kw
Diameter of the disc: 600mm
Input mouthL 300*200mm
Capacity: 400-500kgs per hour
KJ-WCH15
Power: 15kw
Diameter of the disc: 600mm
Input mouthL 300*200mm
Capacity: 500-600kgs per hour
Power: 12kw
Diameter of the disc: 800mm
Input mouthL 400*250mm
Capacity: 700-900kgs per hour
KJ-WCH30
Power: 30kw
Diameter of the disc: 800mm
Input mouthL 400*250mm
Capacity: 800-1000kgs per ho
KJ-WCH37
Power: 37kw
Diameter of the disc: 800mm
Input mouthL 400*250mm
Capacity: 1400-1500kgs per hour
KJ-WCH45
Power: 45kw
Diameter of the disc: 800mm
Input mouthL 300*200mm
Capacity: 1800-2000kgs per hour
Can this machine make wood shavings?
Yes.When take the screen and hammers out, you can get wood shavings for animal bedding, but when making wood shavings, the wood chipper will be equipped with different electric motor with lower rpm. By adjusting the angle of blade, you will get shavings in different thickness.
